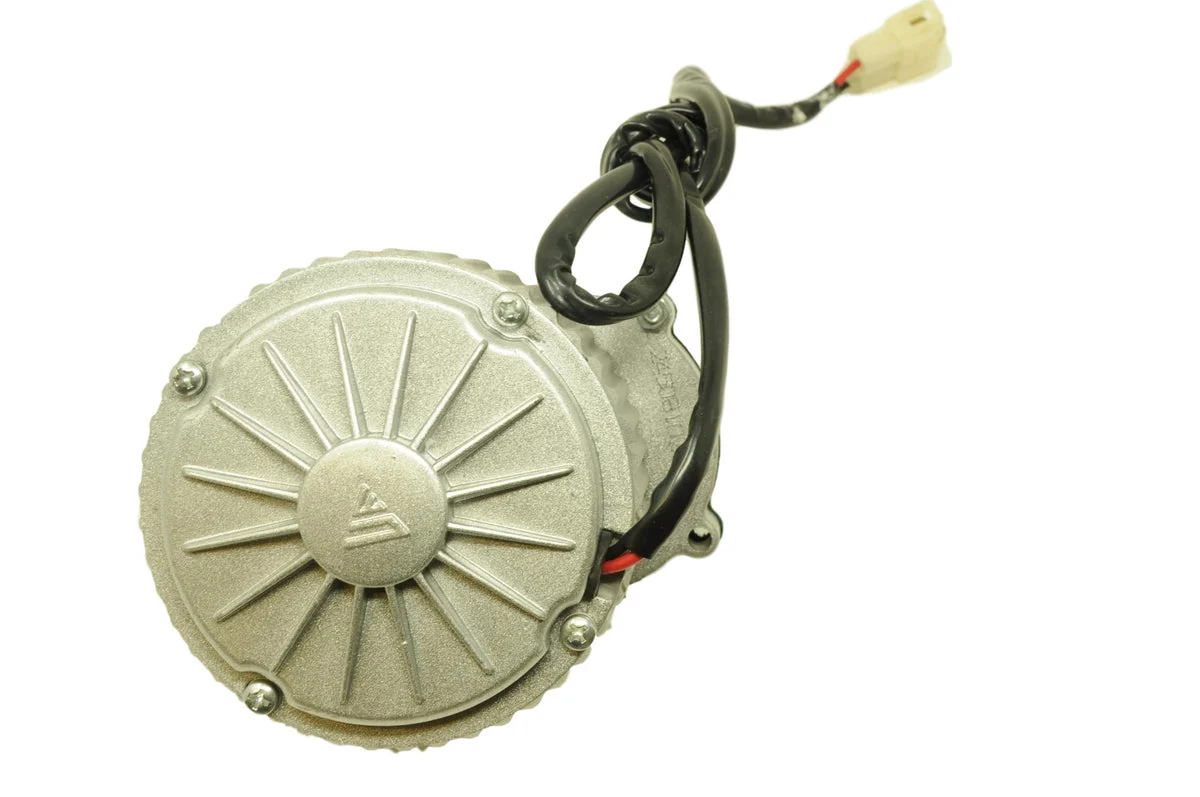

- External mount e-bike wheel motor as used in e-bike conversion kits or some models of e-bike, ideal replacement or use in your own project
- 24v 450w electric bicycle motor with built-in gear reduction transmission.
- Output shaft speed 420 rpm.
- Fitted with 9 tooth drive sprocket and uses standard 1/2″ x 1/8″ bicycle chain.
- Powerful four brush permanent magnet design.
- Can be reversed by changing wires over (see internal picture)
- 12mm external drive shaft, changeable sprocket
- 32” power lead with plug
- 3 screw fixing bolt holes m5 (not supplied) 70mm distance apart
- 110mm diameter,
- Weight 2.18kgs
- Note: though similar to the currie motor, it uses a different size screw fitment
Code: EB052
