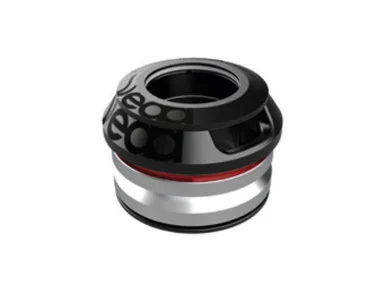

S-DCR model is an Integrated headset compatible with DCR system (Deda internal cable routing) that allows the direct cable routing into the topcover.
This solution makes any Deda stems fitting a DCR frame, a quick and smart solution for most of bicycle brands. It allows the full integration of the cables ,like the DCR headset, but leaving a portion of the cables visible under the stem. The system works with a standard tapered fork steerer (1-1/8″ – 1.5″) and requires a 52mm (1.5″) upper headset bearing od. The special compression ring design leaves room for the cables to fit the gap in between the headset bearing and the fork. The S-DCR headset is also compatible with Deda HSS spacers for a better integration.Compatible with 4 cables routing; DEDA HSS spacers are recommended for S-DCR headset.
Specifications
| Headset Model | Integrated 1.5″ – 1.5″ |
|---|---|
| Bearings Type | Angular contact bearing; chrome steel |
| Bearings Size | Upper 51.9408 mm Lower 51.9408 mm |
| Contact Angle | 4545 |
| Headtube | 56.0 mm |
| Fork Steerer | Tapered 1 1/8″ (28.6 mm) – 1.5″ (38.10 mm) |
| Top Cover | 56 mm |
| Crown Race | 39.8 mm aluminum |
| Stack Height | 16.2mm |
| Weight | 90g |
