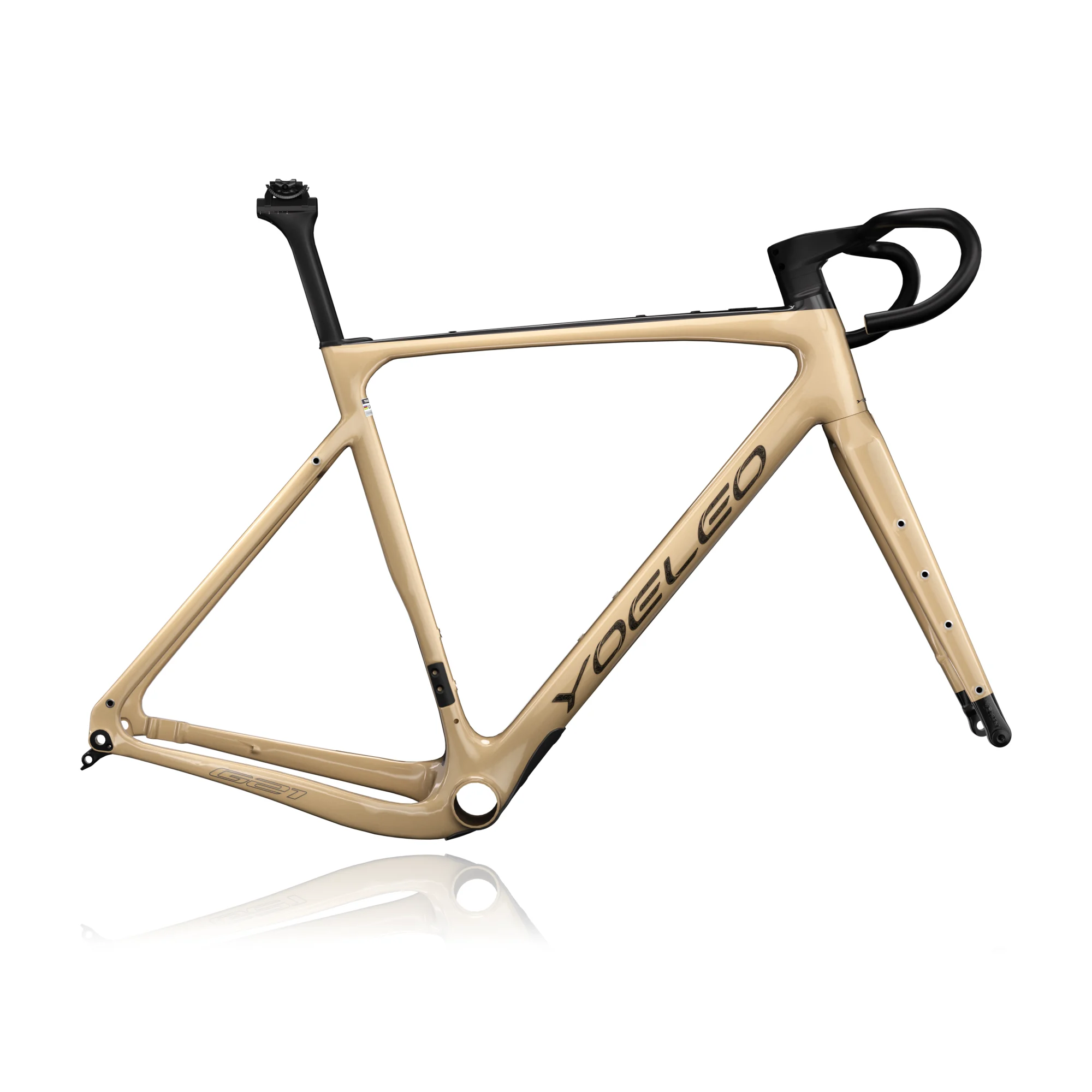

G21 DB Gravel Bike Frameset

Original price was: $1,136.00.Current price is: $227.20.

SKU: G21DB451 Category: Tag:
Share Pinterest
G21 2023
UCI Approved Yes
Parts Included G21 Frame, Fork, Handlebar, Seatpost
Frame
Size 45cm,49cm, 52cm, 54cm, 56cm, 58cm, 60cm
Material High Modulus Toray 800 Carbon Fiber
Color Arctic Ice / Desert Brown / Custom Painting
BB BB T-47 inboard bearing
(pick the right BB-47 depending on your crank spindle size)E.g. if you are using GRX crank : T47 BB inboard bearing for (shimano) 24mm spindle size.
SRAM DUB / DUB wide crank : T47 BB inboard bearing for SRAM DUB
SRAM GXP : T47 BB Inboard bearing for SRAM GXP
BB Width 86.5mm
Headtube Straight 1-1/2”
Rear Dropout 12*142 Thru Axle
Rear Derailleur Hanger Replaceable
Frame Weight Arctic Ice 1150g (49cm) +/-50gDesert Brown 1170g (49cm) +/-50gRaw 1050g (49cm) +/-50g
Handlebar H21 carbon integrated handlebar
Handlebar Size 400mm, 420mm, 440mm
Stem Size 80mm, 90mm, 100mm, 110mm
Handlebar Weight 360+/-15g (420×90)
Fork & Seatpost
Fork 1 1/8″ – 1 1/2″, 12*100 Thru Axle
Fork Weight (Painted, 56cm frame) – G21 Fork: 475+/-10 (with holes)- G21 Fork: 465+/-10 (without holes)
Seatpost Weight 204+/-15g
Seatpost Shape D-shaped
Compatibility
Chainring – Single: Max of 42t for normal crank spindle and 44t for wide crank spindle- Double: 50-34t max with BB to Crank washer
Brake Fitment Flat Mount Disc
Cable Routing Internal
Bottle Mounts 4
Mudguard Compatible Yes
Cargo Rack Compatible Yes
Max Tire Width 700x53mm, 650Bx2.1”
Accessories
Handlebar Spacers – 3mm: 1PC
– 5mm: 1PC
– 10mm: 2PCS
Headset Bearing Cap 10mm: 1PC
Front Axle 1pc
Rear Axle 1pc
Limited Rider Weight 110KG
Warranty 6 Years
