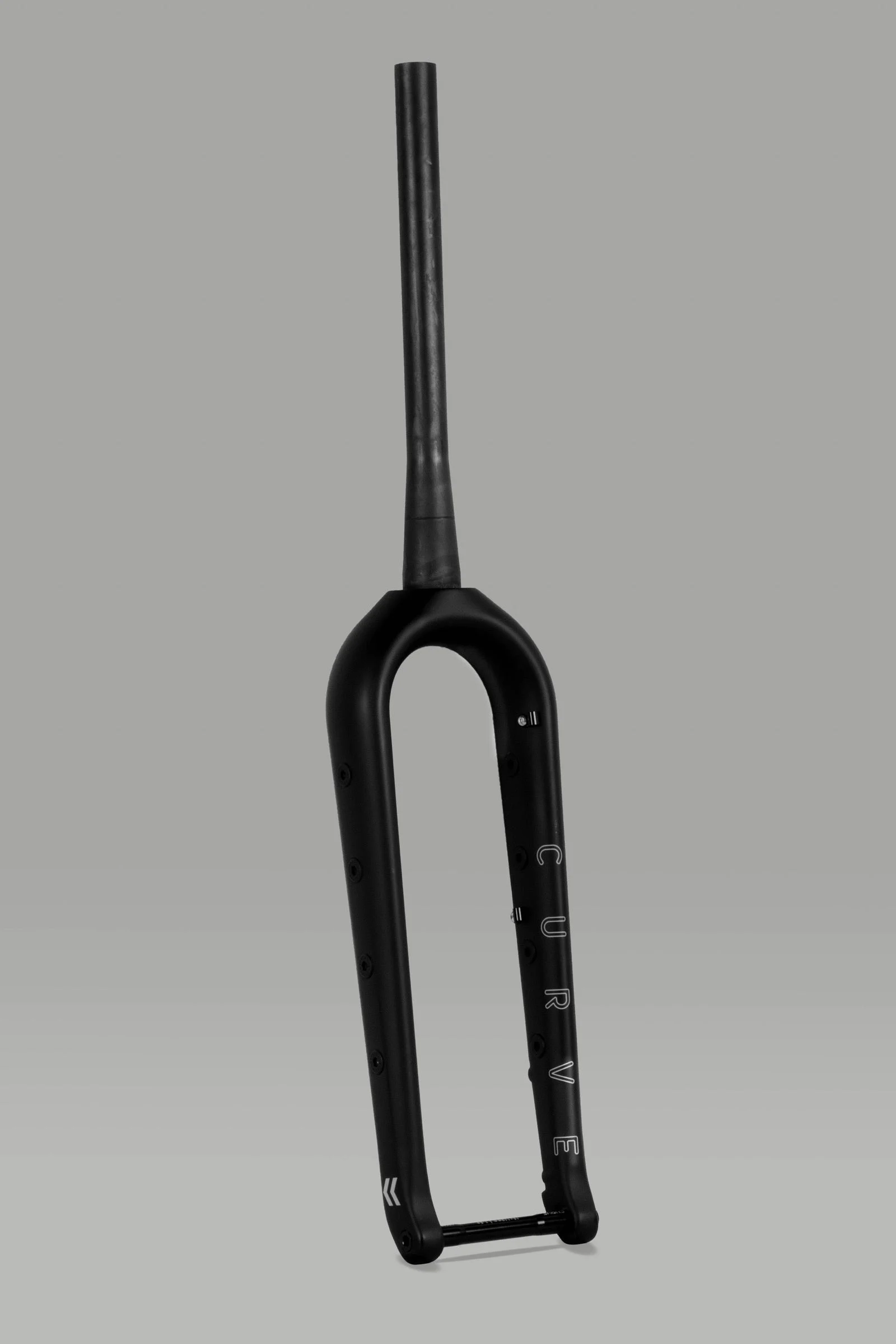

Seek 430 FM (Flat Mount GMX+ Fork)

The Seek 430 FM is our improved non-suspension-corrected fork, complete with mounting points, so you can carry more on your next off-road adventure.Bikepacking CompanionOur Seek 430 FM fork has been made to work in unison with our GMX+ (Ti & Steel) framesets and our popular Walmer Bar & Remlaw Bar. It improves on the original Seek 430 fork with updated brake hose and dynamo cable routing, the introduction of Flat Mount brakes and the addition of four heavily reinforced M5 mounting points per fork blade that can carry up to a whopping 7 kg each (maximum) when secured across three mounts! That’s a total of 14 kg that can be safely carried on the Seek 430 FM!  To achieve this, we had to completely re-think the way the mounts are added to the fork blade. We left the industry-standard rivnuts behind and instead developed our own unique thru-mounts made from 6061-T6 alloy. The mounts are supported by both sides of each fork blade, and they have a larger surface area – this results in a stronger, more durable mounting interface. Please note, the Seek 430 FM is not designed to replace a suspension fork.Ready For AdventureFeaturing 4 x M5 mounting points on each blade, the Seek 430 FM can accommodate anything from extra water bottles, our Rocket Pooches, or any other micro pannier or fork-specific bag.  Please keep in mind that it is designed to carry a max weight of 14 kg (7 kg/ blade across three mounting points). Furthermore, the Seek 430 FM Fork features the lowest possible axle to crown height, 430 mm, allowing frame builders to develop bikes accommodating wider tyres, with a clearance of up to 3.0 inches. With wider tyres, you can explore more rugged terrain with ease.Fork Kit Includes:  Fork:Carbon constructionWeight: 646 gm1 1/8″ – 1.5″ tapered steerer, 350 mm long430 mm axle to crown55 mm offset15 x 110 mm (boost) spacingBrake: Flat mount 160 / 180 mm 8 x M5 mounts (4 per leg)7 kg load limit (across 3 mounting points) – each side. 14 kg total.What’s Included:60 mm long steerer expander plug15 x 110 mm front axle5 x single cable guides (for brake hose and dynamo routing)
